JDZW14-12 voltage transformer, outdoor epoxy resin casting and full-closed construction, is widely used for measuring current, electric energy and protective relaying in the single-phase or three phase power system with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV
Usage Terms
1. Ambient Temperature -25-40℃
2. Installation Site outdoor
Key Technical Data
A. Rated Frequency: 50-60Hz
B. Load power factor cosΦ=0.8 （lagging）
C. Technical standard accords with IEC60044-2:2003
|
Type |
Rated primary Voltage （kV） |
Rated secondary Voltage （kV） |
Accuracy classes combination |
Rated output (VA) |
Thermal limiting Output (VA) |
Rated Insulation level (kV) |
|
JDZW14-12 |
11 |
0.1 0.11 |
0.2 |
60 |
1000 |
12/28/75 |
|
0.5 |
100 |
|||||
|
1 |
150 |
|||||
|
0.22 |
6P |
600 |
1000 |
|||
|
0.1/0.1 0.11/0.11 |
0.2/0.2 |
25/25 |
500 |
|||
|
0.2/0.5 |
25/50 |
|||||
|
0.5/0.5 |
40/40 |
|||||
|
0.1/0.22 0.11/0.22 |
0.2/6P |
25/500 |
800 |
|||
|
0.5/6P |
50/500 |
|||||
|
JDZXW14-12 |
11/ |
0.1/
0.11/ |
0.2/6P |
40/150 |
600 |
|
|
0.5/6P |
80/150 |
|||||
|
1/6P |
150/150 |
Remarks: Upon request we are glad to offer transformers according to other technical specs.

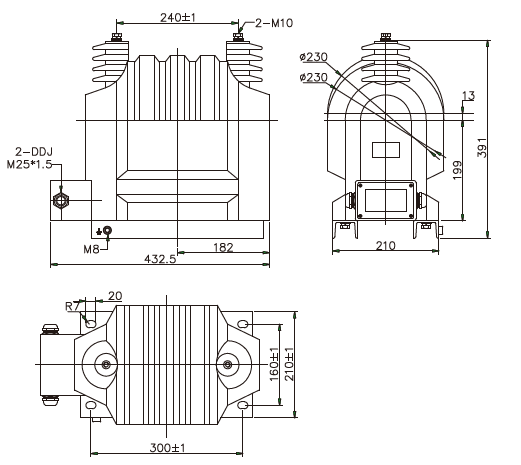

Outline Drawing
