LDZC-10 相序穿心式电流互感器

LDZC

CURRENT TRANSFORMER


The secondary windings are full-enclosed in the flame retardant plastic shells,

primary bushing or cable can pass through the inner hole, bottom has installation

inserts for fixation. It is simple and shortcut, is suitable for measuring current, signal

collection and protective relaying in the medium voltage power system of cable etc


Technical Data

1、Rated secondary current:               5A、1A

2、Power frequency withstand voltage:    3kV

3、Rated frequency:                      50/60Hz

4、Installation site:                   Indoor

5、Technical standard:                  IEC 60044-1

(IEC 61869-1&2)

  • 产品描述
  • 规格参数
  • 资料下载

Specification


LDZC45

Model

LDZC45C

LDZX45P

Purpose

Measuring current transformer

Protective current transformer

Rated primary current

Accuracy class and rated burden  (VA)

Accuracy class and rated burden  (VA)

0.2

0.5

1

10P10

10P5

50





2.5





75





3.75





100



3.75

5



1.5

200

3.75

7.5



2.5



300

5

7.5



3.75



400

7.5

10



5



500

10

15



7.5



600

10

15



10





LDZC52

Model

LDZC52C

LDZC52C

Purpose

Measuring current transformer

Protective current transformer

Rated primary current

Accuracy class and rated burden  (VA)

Accuracy class and rated burden  (VA)

0.2

0.5

1

10P10

10P5

50





2.5





75





2.5





100



2.5

5



1.5

200

2.5

7.5



1.5



300

5

7.5



2.5



400

7.5

10



3.75



500

10

15



5



600

10

15



5

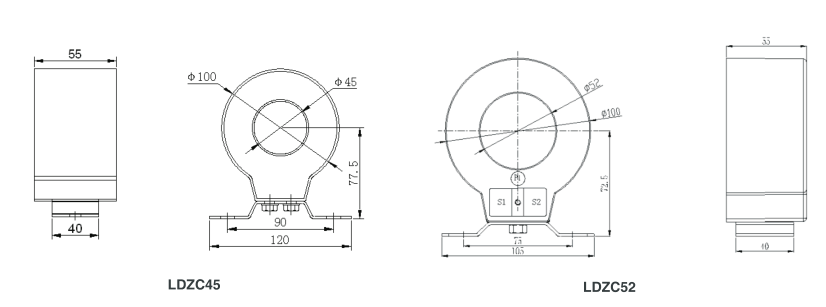

Outline
