LMZW2-0.72
OUTDOOR CURRENT TRANSFORMER
1.Introduction
The CT installed outdoor environment, rated frequency is 50Hz, is suitable for measuring current, energy with AC circuit below 0.66kV.

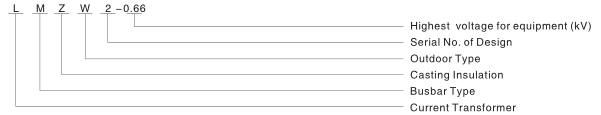

Type Description
Specification
|
Model |
Rated primary current(A) |
Accuracy class |
Output(VA) |
Remarks |
|
LMZW2-0.6 |
150 |
0.2S, 0.2,0.5S,0.5 |
5 |
|
|
200 |
0.2S, 0.2,0.5S,0.5 |
5 |
|
|
|
250 |
0.2S, 0.2,0.5S,0.5 |
5 |
|
|
|
300 |
0.2S |
5 |
|
|
|
0.2,0.5S,0.5 |
10 |
|
||
|
400 |
0.2S |
5 |
|
|
|
0.2,0.5S,0.5 |
10 |
|
||
|
500 |
0.2S |
5 |
|

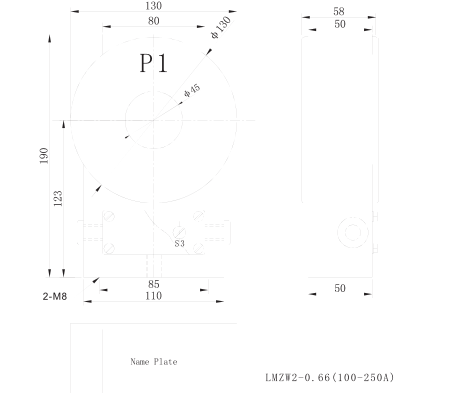

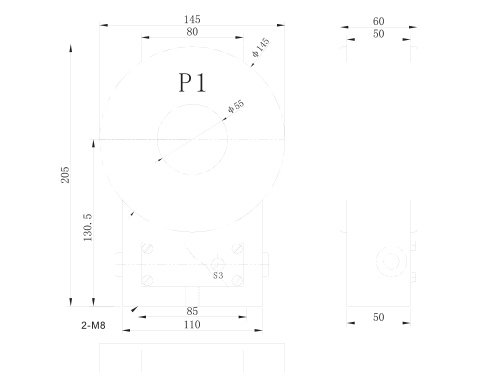

Outline
