JDZX18-24R voltage transformer, epoxy resin casting and full enclosed construction, is used indoor switch cabinet to measure the current, electric energy and protective relaying in single phase or three phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 17.5/24 kV.
The iron core adopts advanced cold-rolled silicon steel sheet. High voltage outgoing line of primary winding was fetched out from top of the product; outgoing line of secondary winding was fetched out from transverse side of the product.
Technical parameter
1. Rated primary voltage: 20/√3 or 15/√3 etc.
2. Technical standard accords with IEC 60044-2:2003 Part2 Instrument transformers-Part2: inductive voltage transformers
Type
Rated primary
voltage (kV)
Rated secondary voltage (kV)
Accuracy classes combination
Rated
output
(VA)
Thermal limiting current
(VA)
Rated insulation level(kV)
JDZX18-24R
15/√3
20/√3
22/√3
0.1/√3
0.11/√3
0.2
30
300
17.5/38/95
24/50/125
0.5
50
1
80
0.1/√3 /0.1/3
0.11/√3 /0.11/3
0.2/6P(3P)
15/50
300
0.5/6P(3P)
30/50
0.5/0.5/6P(3P)
50/50/150
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

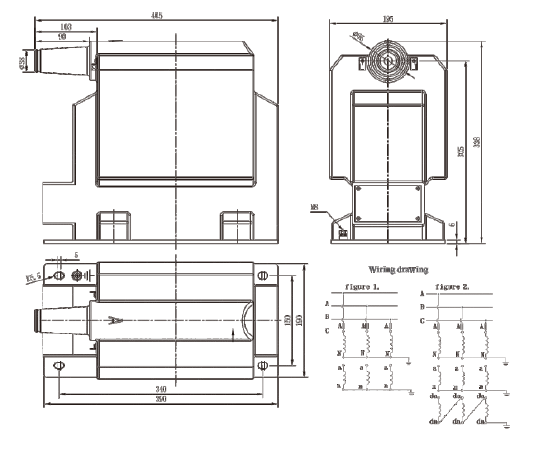

Outline drawing
