LMZC-12 Indoor Low Voltage Current Transformer
The current transformer adopts new type high permeability core with high accuracy, the secondary winding is enclosed in flame retardant plastic shell, the cable can pass from the hole, easy installation. It is used for measuring current, electricity power and relay protection in the AC line or rated frequency 50Hz or 60Hz, rated voltage 660V and below.
  • 产品描述
  • 规格参数
  • 资料下载

Technical Data

Rated insulation level: 0.72/3kV

Rated primary current: 100A~1200A

Rated secondary current: 5A or 1A

Standard IEC 61869-1:2007 and IEC 61869-2:2012. Or IEC60044-1

LMZC-12/45

Rated current ratio (A)

Rated output( (VA)

Np

0.5

0.5S

0.2

0.2S

100/5

3.75

2.5

2.5

/

1

200/5

5

3.75

3.75

1.5

1

300/5

5

5

5

3.75

1

400/5

5

5

5

5

1

500/5

5

5

5

5

1




LMZC-12/80

Rated current ratio (A)

Rated output( (VA)

Np



0.5

0.5S

0.2

0.2S



500/5

5

5

5

5

1



600/5

5

5

5

5

1



800/5

5

5

5

5

1



1000/5

5

5

5

5

1



1200/5

5

5

5

5

1

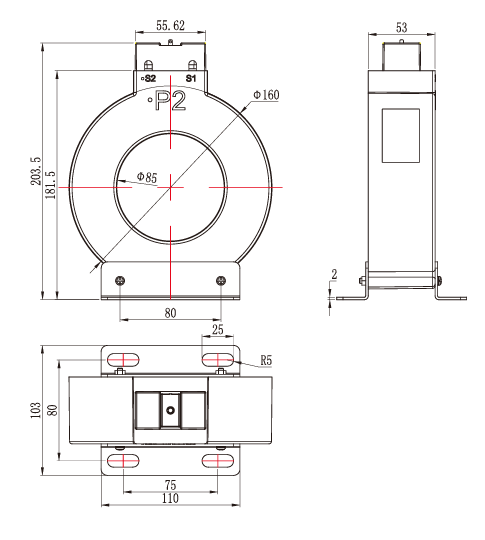

 Outline drawing
