JDZ10-12C
VOLTAGE TRANSFORMER
12kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting and double pole insulated fully
enclosed construction, is used indoor for measuring
voltage, electric energy and protective relaying in the
electric system with the frequency 50Hz or 60Hz and
highest voltage for equipment 12kV.
The product has the feature of high reliability, low
magnetism of core, large creepage distance of
external insulation and maintenance free etc.
Technical Data
1、Installation site: indoor
2、Rated frequency: 50/60Hz
3、Load power factor: cosΦ=0.8 （lagging）
4、Technical standard accords with IEC 60044-2
(IEC 61869-1&3)
|
Type |
Rated primary voltage (kV) |
Rated secondary voltage (kV) |
Accuracy classes combination |
Rated output (VA) |
Thermal limiting current (VA) |
Rated insulation level(kV) |
|
JDZ10-12C |
11 |
0.11 |
0.2 |
15 |
300 |
12/28/75 |
|
0.5 |
30 |
|||||
|
1 |
60 |
|||||
|
0.11/0.11 |
0.2/0.2 |
10/10 |
150/150 |
|||
|
0.2/0.5 |
10/15 |
|||||
|
0.11/0.22 |
0.2/6P(3P) |
15/300 |
300 |
|||
|
0.5/6P(3P) |
25/300 |

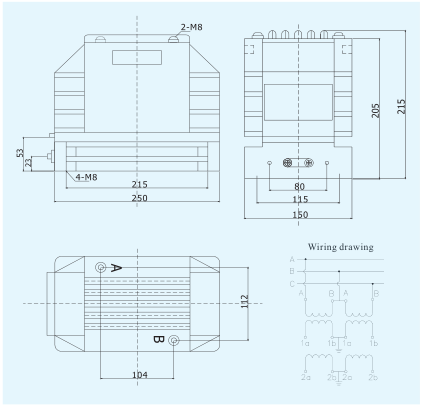

Outline
