LZZBJ9-36
CURRENT TRANSFORMER
□ 36kV Indoor Single-Phase Epoxy Resin Type
Epoxy resin casting insulation and fully enclosed support
construction, encloses the primary & secondary windings and
annular core in the epoxy resin casting body. The product has
large periphery insulation creepage distance, withstanding
dirtiness and dampness. Be suitable for measuring electric
capacity, current and protective relaying in the power system
of 36kV.
Technical Data
1、Rated insulation level: 36/70/170kV
2、Rated frequency: 50/60Hz
3、Installation site: Indoor
4、Technical standard: IEC 60044-1 & (IEC61869-1&2)
Specification
|
Rated transformation ratio(kV) |
Accuracy classes combination |
Rated output (VA) |
Rated short-time thermal current (kA/S) |
Rated dynamic current ( kA) |
||
|
Measuring |
Protective |
|||||
|
0.2（S） |
0.5 |
10P |
||||
|
20-200/5 |
0.2(S)/ 0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P 0.2(S)/ 0.5/10P 0.2/ 0.5/10P |
10 15 |
15 |
15 20 |
150I1n |
375I1n |
|
300/5 |
31.5 |
80 |
||||
|
400/5 |
31.5 |
80 |
||||
|
500/5 |
40 |
100 |
||||
|
600/5 |
50 |
125 |
||||
|
800/5 |
63 |
125 |
||||
|
1000/5 |
80 |
160 |
||||
|
1200~1500/5 |
80 |
160 |
||||
|
1500-2000/5 |
100 |
160 |
||||
|
2000~2500/5 |
100 |
160 |
||||

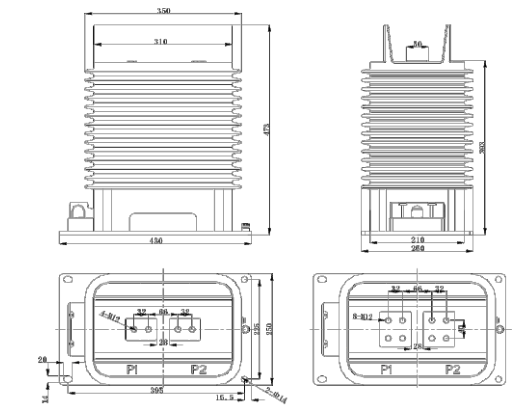

Outline
